Fluke | Digital Multimeter

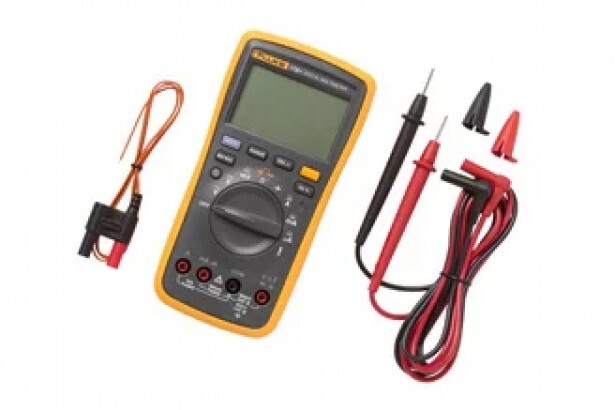

Fluke 17B+ Digital Multimeter

The Fluke 17B+ Digital Multimeter is a versatile and reliable tool designed for general-purpose electrical measurements. With CAT III 600V safety ratings, it provides accurate AC/DC voltage, current, resistance, capacitance, and frequency measurements. Its durable design and easy-to-read display make it a perfect choice for both professionals and DIY enthusiasts..

  • Detail
  • Special Features
  • Specification

The Fluke 17B+ Digital Multimeter is built to meet the needs of both industrial professionals and DIY users. It offers essential measurement functions such as AC/DC voltage, current, resistance, capacitance, and frequency, with high accuracy and a wide range of features. The multimeter is safety-rated for CAT III 600V applications, ensuring safe operation in various environments.

Key Features:

  • Measures AC/DC voltage, current, resistance, capacitance, and frequency

  • Large LCD with bright white backlight for easy reading

  • 6000-count resolution and updates 3 times per second

  • Includes features like Min/Max/Average, hold function, and continuity buzzer

  • CAT III 600V safety rating for reliable performance

  • Powered by 2 AA batteries, offering 500 hours of battery life (without backlight)

  • Includes a protective holster with tilt stand for easy usage

The Fluke 17B+ is designed for precision and durability, providing a reliable solution for troubleshooting electrical systems, checking voltage levels at power outlets, and diagnosing circuit issues.

The Fluke 17B+ Digital Multimeter is built to meet the needs of both industrial professionals and DIY users. It offers essential measurement functions such as AC/DC voltage, current, resistance, capacitance, and frequency, with high accuracy and a wide range of features. The multimeter is safety-rated for CAT III 600V applications, ensuring safe operation in various environments.

Key Features:

  • Measures AC/DC voltage, current, resistance, capacitance, and frequency

  • Large LCD with bright white backlight for easy reading

  • 6000-count resolution and updates 3 times per second

  • Includes features like Min/Max/Average, hold function, and continuity buzzer

  • CAT III 600V safety rating for reliable performance

  • Powered by 2 AA batteries, offering 500 hours of battery life (without backlight)

  • Includes a protective holster with tilt stand for easy usage

The Fluke 17B+ is designed for precision and durability, providing a reliable solution for troubleshooting electrical systems, checking voltage levels at power outlets, and diagnosing circuit issues.

Function Range Resolution Accuracy
AC Volts (40 Hz to 500 Hz) 4.000 V - 1000 V 0.001 V - 1 V 1.0% + 3
DC Volts 4.000 V - 1000 V 0.001 V - 1 V 0.5% + 3
AC Millivolts 400.0 mV 0.1 mV 3.0% + 3
DC Millivolts 400.0 mV 0.1 mV 1.0% + 10
Diode Test 2.000 V 0.001 V 10%
Resistance 400.0 Ω - 50.00 MΩ 0.1 Ω - 0.01 MΩ 0.5% + 3 to 1.5% + 3
Capacitance 40.00 nF - 1000 μF 0.01 nF - 1 μF 2% + 5
Frequency 50.00 Hz - 100 kHz 0.01 Hz - 0.1 kHz 0.1% + 3
AC Current μA (40 Hz to 400 Hz) 400.0 μA - 4000 μA 0.1 μA - 1 μA 1.5% + 3
AC Current mA (40 Hz to 400 Hz) 40.00 mA - 400.0 mA 0.01 mA - 0.1 mA 1.5% + 3
DC Current μA 400.0 μA - 4000 μA 0.1 μA - 1 μA 1.5% + 3
DC Current mA 40.00 mA - 400.0 mA 0.01 mA - 0.1 mA 1.5% + 3
Temperature -200 °C to 1090 °C 0.1 °C 2% ± 1 °C, 9% ± 2 °C
Backlight - - Yes



Environmental Specifications:



  • Operating Temperature: 0 °C to 40 °C

  • Storage Temperature: -30 °C to 60 °C

  • Operating Humidity: Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C; ≤75% RH at 30 °C to 40 °C

  • Storage Humidity: ≤80% RH at 10 °C to 30 °C; ≤70% RH at 30 °C to 40 °C

  • Altitude:

    • Operating: 2000 m

    • Storage: 12,000 m

Warranty and Protection:

  • Overvoltage Category: CAT III 600V, Pollution Degree 2

  • Drop Test: 2 meter (6.5 ft)

  • Ingress Protection: IP 40

  • Electromagnetic Compatibility: IEC 61326-1: Portable EMC Environment Class A

  • Warranty: Limited lifetime

Mechanical and General Specifications:

Property Value
Size (H x W x L) 183 x 91 x 49.5 mm
Weight 455 g
Battery Life 500 hours (without backlight)
IP Rating IP 40
Counts 4000
Display 4000 counts, updates 3/sec
